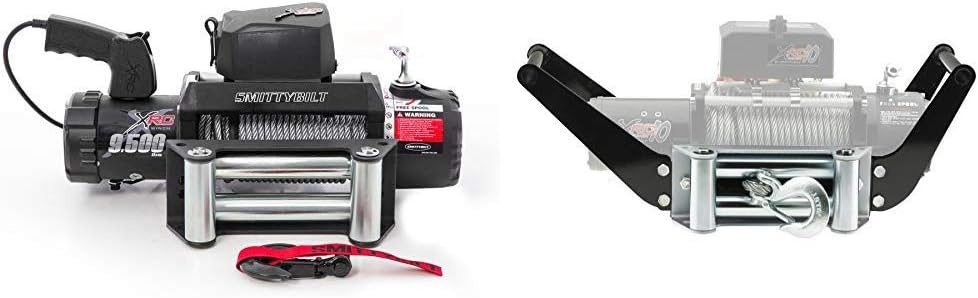

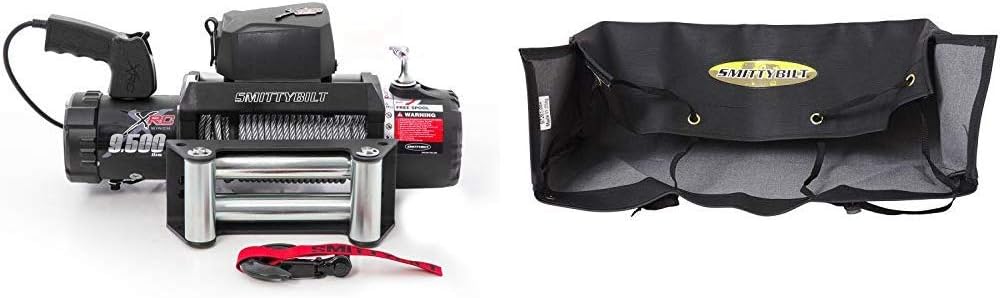

17,500 Pound Load Capacity Winch W832294
17,500 Pound Load Capacity Winch W832294
Your purchase includes One Smittybilt GEN2 XRC Winch, 97417 model with 17,500 lbs. load capacity
Winch dimensions: 24.4” L x 8.4” W x 10.7” H | Product Weight: 132.2 lbs. | Weight capacity: 17,500 lbs. | Cable type – 93.5” diameter, Wire rope | Motor – 6.6hp | Control – 12” lead | Gear-train – 3-stage planetary | Fairlead – 4-way roller
Completely Waterproof, state-of-the-art 500AMP Solenoid
Kit comes complete with all wiring required for installation. Smittybilt recommends using supplied wiring
Smittybilt offers a limited lifetime for replacement to the original purchaser on stainless steel products. Dual-stage, powder coated products carry a 5-year or 100,000 mile warrany, whichever comes first

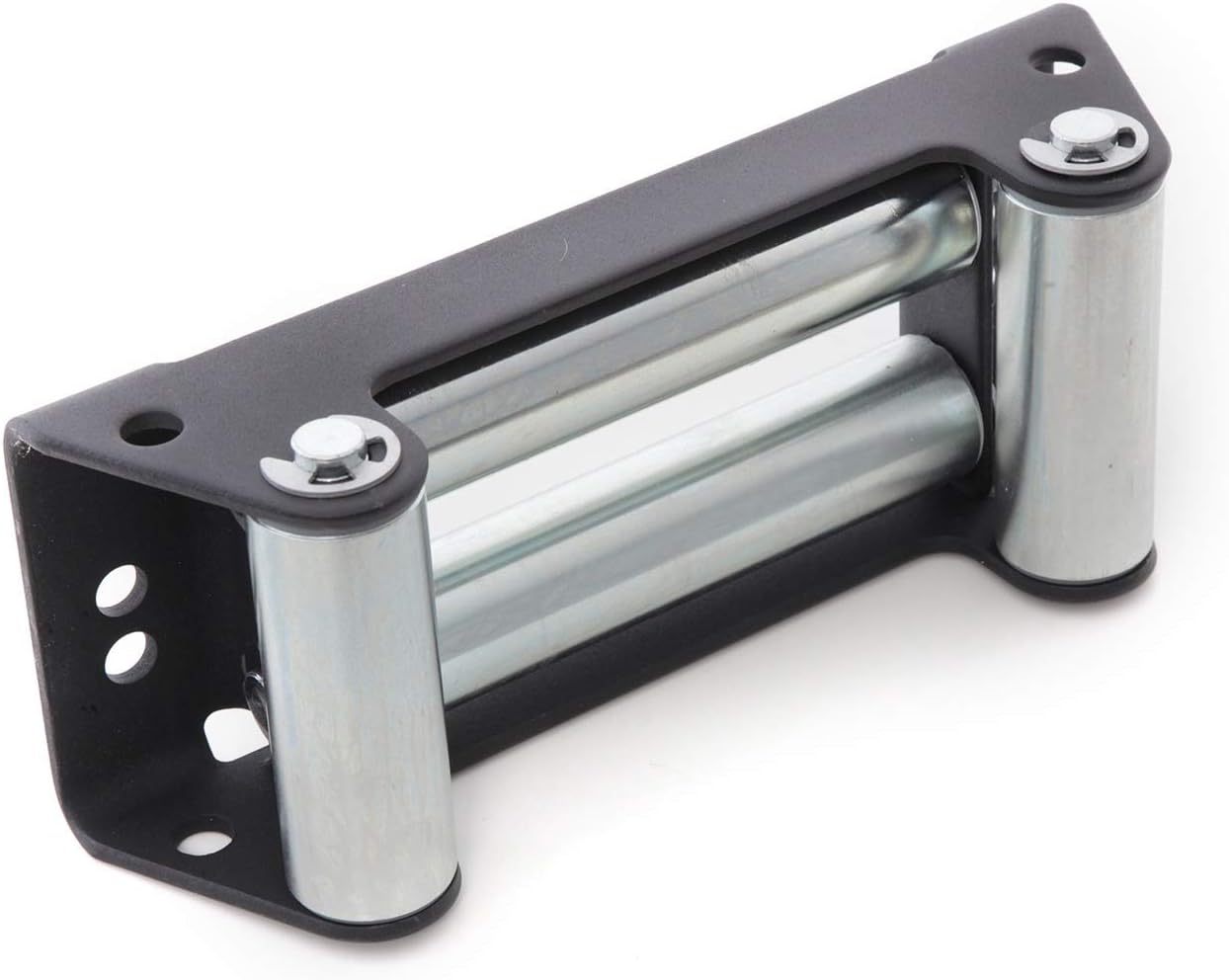

Waterproofing: IP67 rating, fairlead: 4-way roller, rated line pull: 17,500 pounds (7,954 kilograms) single-line, remote control: included, motor: 6.6hp series wound recommended, battery: 650CCA minimum for winching, control: remote switch, 12 feet (3.7m) lead, battery leads: 25mm, 72 inch (1.83m), gear train: 3-stage planetary, finish: textured black, gear ratio: 330:1, weight: 132.2 pounds (60.0 kilograms), clutch: sliding ring gear mounting,
bolt pattern: 10.0 inch x 4.50 inch, brake: automatic in-drum.
overall dimensions Overall Dimensions (L x W x H): 24.4' x 8.4' x10.7'.
drum size: diameter 3.45 inch (88.0mm);
length: 10.0 inch (254mm);
cable: 93.5 feet 7/16 inch diameter.
The XRC 12 is the next generation in winching technology
| Part Numbers | 10,000 lb | 12,000 lb | 15,500 lb / 17,500 lb |
|---|---|---|---|
| XRC series | #97495 | #97412 | #97415 / #97417 |
| XRC COMP series | #98495 | #98412 | n/a |
